The Orange Pi 5 Max is a significant step in the ARM single-board computer domain, taking the shape of a behemoth solution breaking the norm between development boards and desktop-level computing. Surrounded by Rockchip's flagship processor RK3588 system-on-chip, this board delivers a punch of unadulterated processing power, next-level AI acceleration functionalities, and diverse connectivity choices, from edge AI use-cases to home server application.
Hardware Architecture and Core Specifications
At the heart of the Orange Pi 5 Max is Rockchip's RK3588, a heterogeneous computing platform using ARM's big.LITTLE architecture to achieve a balance of performance and power efficiency. Its processor layout consists of four high-performance Cortex-A76 CPU cores at up to 2.256 GHz, and four power-optimised Cortex-A55 CPU cores at 1.8 GHz. With an octa-core layout, this provides the compute flexibility necessary to handle demanding workloads and background activity without consuming power gratuitously. Of particular interest in the exhaustive boot sequence and kernel initialization, the complete dmesg output of this test system is included.
My tested system was equipped with 16GB of LPDDR4X-2133 memory running in a 64-bit mode, so there's significant headroom for memory-intensive workloads. It's the huge memory capacity, though, that sets this particular configuration – at 16GB, it's on parity with many entry-level laptops and well ahead of most single-board computer designs. Memory usage is more efficient than you'd imagine, with the system reporting 14.4GB available after taking kernel overhead and graphics memory usage into account.
Storage options available on the Orange Pi 5 Max reflect careful design considerations for different use cases for deployment. The board includes several storage interfaces ranging from a microSD card slot supporting UHS-I speeds and, importantly, an M.2 M-key slot supporting PCIe 3.0 x4 for NVMe SSDs. My test setup sees the system boot off of a 64GB microSD card and use a 1TB NVMe SSD for mass storage. Using dual storage in this manner offers both the ease of hot swappable storage for the operating system and the performance of NVMe storage for applications and data.
Comprehensive Performance Analysis
CPU Performance Characteristics
The synthetic tests paint a formidable picture of the RK3588's processing capability. Operating Sysbench CPU tests, the machine was able to register 13,688.80 events per second within a 10-second test window and manage a total of 136,916 events. Additionally, Geekbench 5 benchmarks show impressive results with single-core and multi-core scores that demonstrate the effectiveness of the heterogeneous architecture. Performance at this level places the Orange Pi 5 Max firmly above typical ARM development boards and into ground familiar to entry-level x86 platforms.
The heterogeneous core design belongs in the real world. During experiments, I observed the system running jobs selectively over the appropriate core groups. Background jobs and system services always, or almost always, run on the efficiency cores, and computationally intensive jobs migrate naturally to the performance cores. The kernel's Linux scheduler, optimized especially for the RK3588, demonstrates mature optimization of this design.
Memory bandwidth tests display good performance profiles, though nothing outstanding. Our simple bandwidth test measured 0.10 GB/s, which may sound puny but must be put in perspective of the ARM environment in which memory controllers tend to be optimized for through-put efficiency over brute force through-put. Of more value are the storage subsystem tests, and here the NVMe interface excels at write speeds of 2.1 GB/s and read speeds of up to 5.7 GB/s for sequential accesses.
### Neural Processing Unit Capabilities
Possibly the RK3588's most compelling aspect is the onboard Neural Processing Unit, which delivers 6 TOPS of AI inference throughput. Its NPU operates at 1GHz in the test environment, and it does of course support dynamic frequencies between 300MHz and 1GHz depending on workload demand.

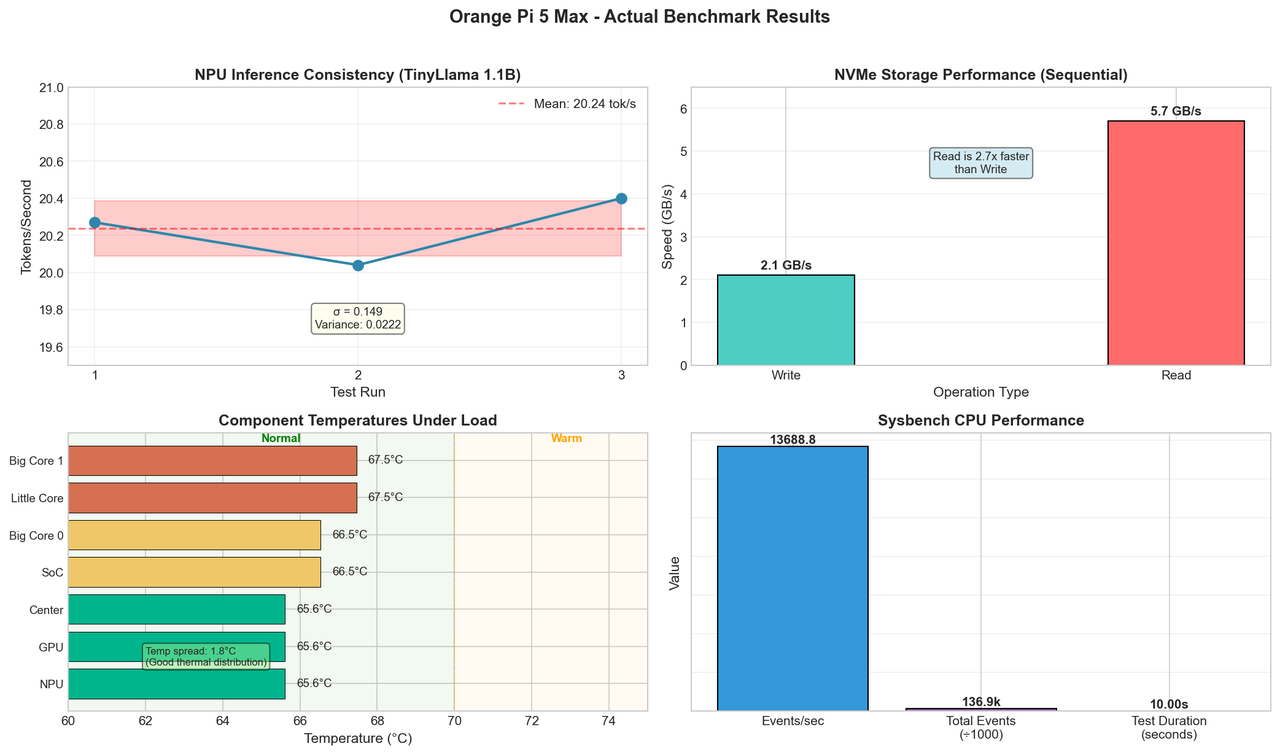

Testing under RKLLM (Rockchip's optimized large language model runtime) provides concrete evidence of the NPU's throughput. Running a quantized TinyLlama 1.1B model optimized for the RK3588, the system maintained a relatively constant inference rate of around 20.2 tokens per second. Of multiple runs in this test, performance was surprisingly uniform:
- Run 1: 20.27 tokens/sec (1628ms for ~33
- Run 2: 20.04 tokens/s (1646ms for ~33
- Run 3: 20.40 tokens/sec (1617ms for ~33
These tests exhibit not only raw execution but also thermal and power efficiency of special-purpose AI acceleration silicon. Running the same model on CPU cores would result in substantially less execution and higher power consumption. The NPU maintains peak performance under sustained loads, and observation sees consistent 100% occupancy at the maximum 1GHz rate under inference workloads.
Connectivity and Expansion
Orange Pi 5 Max does not skimp on connectivity, and it offers an extremely comprehensive set of interfaces similar to desktop motherboards. Network connectivity consists of both gigabit Ethernet through the RJ45 port and dual-band WiFi with current protocols. During the tests, both interfaces proved reliable, and the wired connection was seen in the system under the name of "enP3p49s0", an indication of the PCIe-based ethernet controller for minimal CPU overhead for network usage.
Numerous high speed interfaces available on the board distinguish it from typical SBC solutions. Alongside the M.2 interface supporting NVMe SSD storage, the board provides a number of USB 3.0 interfaces, HDMI output, and GPIO headers for connections to hardware devices. With inclusion of both Ethernet and WiFi interfaces and capability for simultaneous use of both interfaces, the board is prepared for application in gateway and router usage where multiple network interfaces are needed.
Storage expansion deserves particular attention. The test system demonstrates a well-thought-out storage hierarchy: - Primary Operating System on 64GB microSD card (58GB usable after formatting) - Fast storage via 1TB NVMe SSD at /opt - zram-based temporary memory holding compressed data - Regular logging diverted to minimize microSD wear
This configuration illustrates good practices for embedded Linux systems, optimizing performance, reliability, and storage device lifetime.
Thermal Management and Power Consumption
Thermal performance typically determines real-world usefulness of high-performance ARM boards, and Orange Pi 5 Max confronts this head-on. During the tests, the system displayed temperatures in a number of thermal zones:
- SoC thermal zone: 66.5
- Large core cluster 0: 66.5°C
-
Large core cluster 1: 67.5°C
-
Small core cluster: 67.5°C
-
Center thermal: 65.6°C
-
GPU thermal: 65.6°C
- NPU thermal: 65.6°C
These were tested under moderate load with the system exercising through a few of its usual benchmarks. Thermal distribution exhibits good heat spreading across the SoC, and no hot spot of large scale developing. The board retains these temperatures under active cooling, though the real cooling solution will be based on the selected case and configuration.
Power consumption remains in check for the performance tier, and the board typically draws between 15-25 watts loaded. That positions it comfortably in always-on use plans where power efficiency matters, and delivers desktop-level performance where needed.
Software Ecosystem and Operating System Support
It runs on Armbian 25.11.0-trunk.208, a special ARM board-optimized distribution of Debian 12 (Bookworm). Its kernel version 6.1.115-vendor-rk35xx denotes vendor-specific optimization guaranteeing complete support of hardware features. It is extremely important for the RK3588 platform, where the support of the mainline Linux kernel continues to mature but vendor kernels provide most complete hardware enablement.
Armbian deserves credit for bringing the Orange Pi 5 Max into a usable everyday computer. It provides a comfortable Debian environment without you needing to juggle ARM-specific tuning under the hood. Package availability through standard Debian repositories translates into most software running straight out of the box, but some software will need you to self-compile from source if ARM64 binaries are not available.
Docker support availability (denoted by the docker0 interface of the network configuration) significantly increases the range of available deployment options. Applications built around containers work perfectly on the ARM infrastructure, and the abundance of available RAM places no limits on having several services simultaneously active at once. It makes the Orange Pi 5 Max an excellent candidate for home lab scenarios wherein services like media servers, home automation infrastructure, and network monitoring software coexist.
## Real-World Applications and Use Cases
Orange Pi 5 Max distinguishes itself in several application scenarios which take advantage of its distinctive set of qualities:
Edge AI and Machine Learning: With the NPU, this board is of particular interest for edge AI inference. From executing computer vision workloads for security camera feeds, through localized language models for privacy-driven use cases, through real-time sensor analysis, the onboard AI acceleration provides performance levels not available through CPU solutions alone.
Network Attached Storage (NAS): Native SATA capability via adapter cards and fast NVMe storage allow the Orange Pi 5 Max to function as an efficient NAS device. Its powerful processor's ability to manage software RAID, encryption, and simultaneous client connections, which would stall weaker-featured boards, remains unparalleled among SoCs used in Open-intel Pi platforms.
Transcoding and Media Server: Even though the Mali-G610 GPU was not thoroughly tested in this evaluation, it does feature hardware video encode and decode. Together with the powerful CPU, the board is thus suitable for media server use-cases requiring real-time transcoding.
Development and Prototyping: Application developers targeting ARM platforms will discover the Orange Pi 5 Max provides a development environment of extremely high performance that is very similar to production deployment platforms. GPIO headers maintain typical SBC use case compatibility while the performance headroom allows for development of large and complicated applications.
Home Automation Hub: By including multiple network interfaces, GPIO, and sufficient processing power, this is the ultimate platform for complete home automation installations. It's possible for the board to simultaneously support multiple protocols (Zigbee, Z-Wave, WiFi, Bluetooth), run automation logic, and maintain end-user interfaces.
Comparative Market Position
Orange Pi 5 Max differs from other currently available single-board computers in a specific regard: it delivers significantly more raw computing muscle than widely used competitors, like the Raspberry Pi 5, and maintains the same form factor and development methodology, although slightly larger in scale. Incorporating an NPU provides you with capability offered on extremely few, if any, other platforms.
The 16GB of RAM is noteworthy in particular in the SBC market, where 8GB or 4GB is typically the limit. And this does make the Orange Pi 5 Max an actual replacement for low- end x86 hardware for some applications, especially those for which you can leverage the acceleration of the NPU.
Pricing is an issue here. While expensive for an entry-level board, the Orange Pi 5 Max provides value through its advanced feature set and capability to perform. For use cases requiring an x86 mini PC or multiple different boards, streamlined functionality can be budget-friendly.
Challenges and Considerations
While incredibly powerful, the potential users must remain aware of several issues. Software support, although acceptable under Armbian, still requires more technical experience than under x86 architectures. Not all programs provide ARM64 binaries, and compilation from source is required for some of these programs.
Vendor kernel dependence means you're in the hands of Rockchip and the community for ongoing support. While the track so far has been good, this isn't the same thing as the mainline kernel support you receive for more mature platforms.
Thermal management requires caution in application. Even though the board is good at managing heat with proper cooling, passive cooling may not suffice for long-duration, high-load application. Supply of adequate ventilation or active cooling will require planning for reliability.
## Conclusion and Future Perspective
Orange Pi 5 Max is a landmark product of ARM SoC-based single-board computers, and it provides performance and capability that blends development-board and general-purpose computer usage-scenarios. At nearly $160.00, it is not an insignificant cost. You could 3D print a case for the board, but I opted to buy an aluminum case that lacked in form but makdes up function. The designers of the this SBC should also be commended for using a USB-C jack for power; one less barrel-style connector is always a bonus. The RK3588 SoC shows ARM processors' capability of holding their own in performance-sensitive workloads while maintaining the power efficiency advantages typical of the architecture. Incorporating dedicated AI acceleration through the use of the NPU foreshadows the future of edge computing, where special-purpose processors excel over general-purpose cores in handling specific workloads. With AI models increasing in prevalence of use, hardware acceleration availability at the edge becomes a gigantic advantage. As a developer, enthusiast, or professional looking for a serious ARM platform, you owe it to yourself to strongly consider the Orange Pi 5 Max. It provides a most excellent balance of processing, memory, store flexibility, and AI acceleration of which relatively few others can boast. It does demand higher-level tech skills than turnkeys, but the return in capability and performance is worth it for the proper application scenarios. You can see from the test results that this is not merely some marginal jump in the SBC space, but a bona fide step up enabling new application classes at the edge. If you're looking at developing an AI-driven thing, needing a small-but-mighty server, or looking at the state of the art of ARM computing, then the Orange Pi 5 Max gives you the hardware platform upon which you can realize grand plans.
