RetroShield Z80 Projects

A collection of software tools, language interpreters, compilers, and development utilities for the RetroShield Z80 platform.

About the RetroShield

The RetroShield is a hardware platform created by Erturk Kocalar that allows vintage microprocessors like the Z80, 6502, and 6809 to run on modern Arduino boards. The Z80 variant provides a real Zilog Z80 CPU connected to an Arduino Mega or Teensy, which emulates RAM, ROM, and I/O peripherals. This unique architecture lets you run authentic Z80 code on real silicon while leveraging modern USB connectivity and the Arduino ecosystem for development.

The RetroShield hardware is open source and available for purchase on Tindie. The Teensy adapter provides significantly more RAM (256KB vs ~4KB), enabling more ambitious projects.

The Projects

RetroLang - A Systems Programming Language

RetroLang is a custom systems programming language and compiler designed specifically for Z80 microprocessors. It features Pascal/C-like syntax that compiles directly to Z80 assembly.

Features:

Pascal/C-like syntax that's easy to read and write
Compiles directly to Z80 assembly
Built-in serial I/O for RetroShield
Functions with recursion
16-bit integers and 8-bit bytes
Arrays and pointers
Inline assembly escape hatch

Example - Factorial:

func factorial(n: int): int
    if n <= 1 then
        return 1;
    else
        return n * factorial(n - 1);
    end;
end;

proc main()
    var i: int;

    print("Factorials:");
    println();

    for i := 1 to 8 do
        printi(i);
        print("! = ");
        printi(factorial(i));
        println();
    end;
end;

Installation:

cargo install retrolang retrolang-asm

Related Crates:

retrolang - The compiler
retrolang-asm - Z80 assembler (forked from FantASM by Guy Black)
retrolang-math - Expression evaluator
retrolang-bin2c - Convert binaries to C arrays for Arduino

Fortran 77 Interpreter

kz80_fortran is a Fortran 77 subset interpreter written in C and cross-compiled with SDCC. It runs natively on the Z80 and provides an interactive REPL with program entry mode.

Requires the Teensy adapter (~8KB RAM needed).

Features:

Free-format source input (no column requirements)
REAL numbers via BCD floating point (8 significant digits)
Block IF/THEN/ELSE/ENDIF statements
DO loops with optional step
1D arrays
SUBROUTINE and FUNCTION support
Intrinsic functions: ABS, MOD, INT, REAL, SQRT

Supported Statements:

Statement	Example
PROGRAM/END	`PROGRAM HELLO` ... `END`
INTEGER/REAL	`INTEGER I, J` / `REAL X, Y`
DIMENSION	`DIMENSION ARR(10)`
IF/THEN/ELSE/ENDIF	`IF (X .GT. 0) THEN` ... `ENDIF`
DO/CONTINUE	`DO 10 I = 1, 10, 2` ... `10 CONTINUE`
WRITE/READ	`WRITE(,) 'Hello', X`
SUBROUTINE/FUNCTION	Full subprogram support
CALL/RETURN	`CALL MYSUB(A, B)`

Example:

PROGRAM AVERAGE
  INTEGER I, N
  REAL SUM, AVG, X

  WRITE(*,*) 'HOW MANY NUMBERS?'
  READ(*,*) N

  SUM = 0.0
  DO 10 I = 1, N
    WRITE(*,*) 'ENTER NUMBER', I
    READ(*,*) X
    SUM = SUM + X
10 CONTINUE

  AVG = SUM / REAL(N)
  WRITE(*,*) 'AVERAGE =', AVG
END

The interpreter includes a comprehensive test suite with 193+ unit tests covering BCD math, lexer, parser, symbol table, and program control flow.

Retro Pascal Interpreter

kz80_pascal is a minimal Pascal interpreter that runs natively on the Z80. Currently in active development with expression evaluation mode working.

Features:

Native Z80 Pascal interpreter
MC6850 ACIA serial I/O
Interactive expression evaluation mode
Integer and boolean arithmetic
Floating point support (experimental)

Current Status (v0.1.3):

Retro Pascal v0.1.3
For RetroShield Z80
(Expression Eval Mode)

> 2 + 3
5
> 10 * 4 + 2
42
> TRUE AND FALSE
FALSE

Implemented:

Integer literals and arithmetic: +, -, *, DIV, MOD
Boolean literals: TRUE, FALSE
Boolean operators: AND, OR, NOT
Comparison operators: =, <>, <, >, <=, >=
Parenthesized expressions
Unary minus

Planned:

PROGRAM, VAR, BEGIN/END
Types: INTEGER, BOOLEAN, CHAR
Statements: :=, IF/THEN/ELSE, WHILE/DO, FOR/TO/DO
I/O: WRITE, WRITELN, READ, READLN
PROCEDURE declarations

RetroShield Z80 Emulator

A Z80 emulator for testing RetroShield firmware on your development machine, available in both C and Rust implementations.

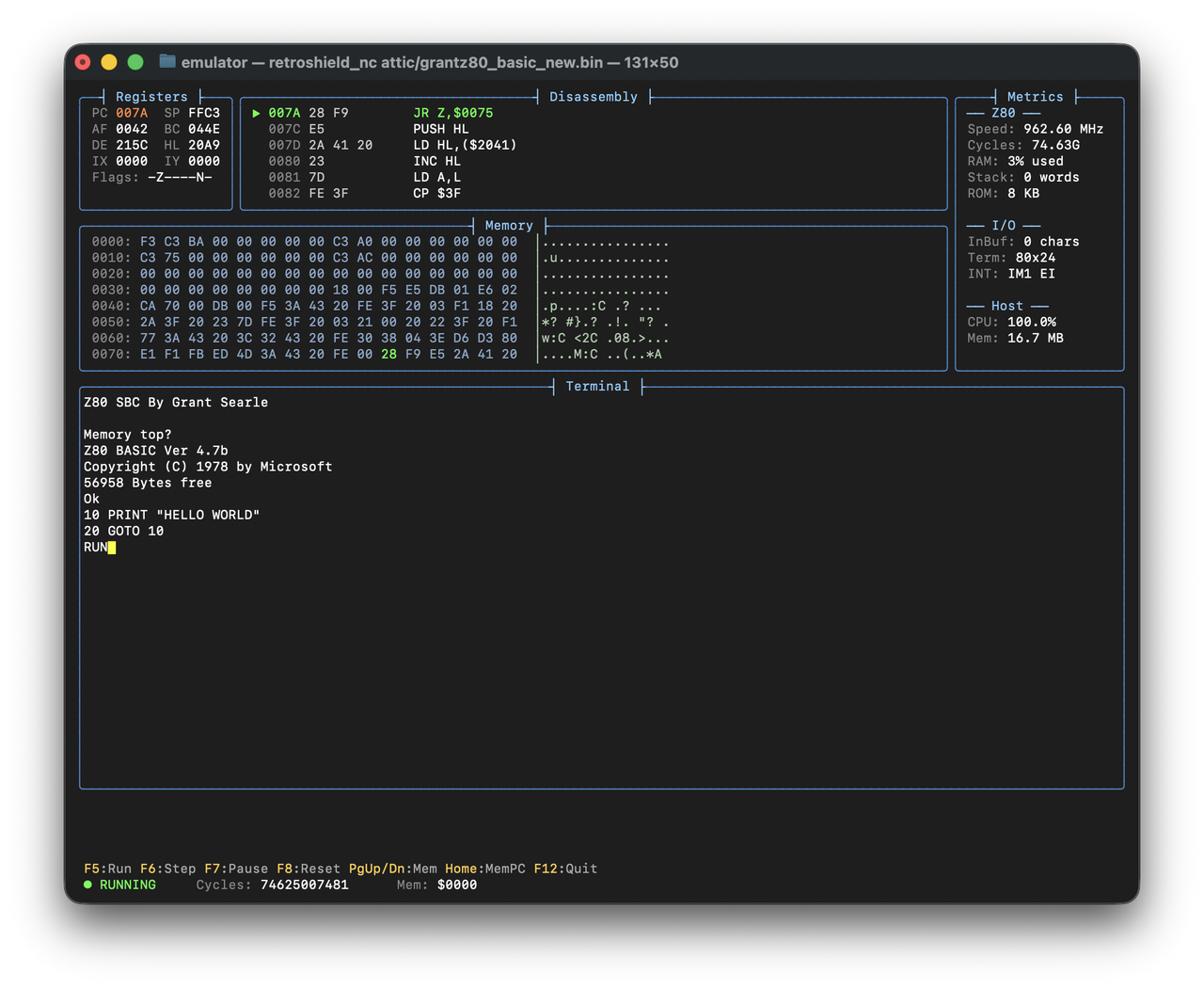

RetroShield Z80 Emulator TUI

Features:

Cycle-accurate Z80 emulation
Dual serial chip emulation:
MC6850 ACIA (ports $80/$81) - used by MINT, Firth, Monty, Retro Pascal
Intel 8251 USART (ports $00/$01) - used by Grant's BASIC, EFEX
Two emulator modes:
Simple passthrough (stdin/stdout)
Full TUI debugger with registers, disassembly, memory view

C Implementation

Uses the superzazu/z80 library and notcurses for the TUI.

# Build
make

# Run with TUI
./retroshield_nc rom.bin

Rust Implementation

Uses the rz80 crate and ratatui for the TUI.

# Build
cargo build --release

# Run with TUI
./target/release/retroshield_tui rom.bin

TUI Controls:

Key	Action
F5	Run continuously
F6	Step one instruction
F7	Pause execution
F8	Reset CPU
F9/F10	Memory view scroll
F12	Quit

TUI Layout:

┌─ Registers ─────────┬─ Disassembly ──────────┬─ Stack ─────────┐
│ PC:0075  SP:FFC2    │ >0075: LD A,($2043)    │>FFC2: 0075      │
│ AF:0042  BC:010D    │  0078: CP $00          │ FFC4: 0120      │
│ DE:215C  HL:20A6    │  007A: JR Z,$0075      │ FFC6: 0000      │
│ IX:0000  IY:0000    │                        ├─ CPU State ─────┤
│ Flags: -Z----N-     │                        │ IM:1 IFF1:1     │
├─ Memory @ $2000 ────┤                        │ HALT:0 I:00 R:7F│
│ 2000: 00 0D 50 52...├────────────────────────┴─────────────────┤
│ 2010: 57 20 57 4F...│ Terminal                                 │
│ ...                 │ Z80 BASIC Ver 4.7b                       │
│                     │ Ok                                       │
└─────────────────────┴──────────────────────────────────────────┘
[RUNNING] Z80:31.16MHz CPU:5.8% Mem:8.5MB F5:Run F6:Step F12:Quit

Tools and Utilities

bin2c (retrolang-bin2c)

A utility to convert Z80 binary ROMs to C arrays for inclusion in Arduino sketches. This is useful for embedding ROM images in the Arduino flash memory using PROGMEM.

cargo install retrolang-bin2c

# Convert ROM to C header with PROGMEM attribute
bin2c rom.bin -o rom.h --progmem --uint8

# Output:
# #ifndef ROM_H
# #define ROM_H
# #include <avr/pgmspace.h>
# const uint8_t rom[] PROGMEM = {
#     0x00, 0x01, 0x02, ...
# };
# #define ROM_SIZE 8192
# #endif

Architecture Overview

How It All Fits Together

┌─────────────────────────────────────────────────────────────────┐
│                    Development Machine                          │
├─────────────────────────────────────────────────────────────────┤
│  ┌───────────────┐    ┌───────────────┐    ┌───────────────┐   │
│  │   RetroLang   │    │  retrolang-   │    │    bin2c      │   │
│  │   Compiler    │───▶│     asm       │───▶│   (optional)  │   │
│  │    (.rl)      │    │    (.asm)     │    │     (.h)      │   │
│  └───────────────┘    └───────────────┘    └───────────────┘   │
│         │                    │                    │             │
│         │                    ▼                    │             │
│         │             ┌───────────┐               │             │
│         │             │   .bin    │               │             │
│         │             │   ROM     │               │             │
│         │             └───────────┘               │             │
│         │                    │                    │             │
│         ▼                    ▼                    ▼             │
│  ┌─────────────────────────────────────────────────────────┐   │
│  │               RetroShield Z80 Emulator                   │   │
│  │         (Test and debug before hardware)                 │   │
│  └─────────────────────────────────────────────────────────┘   │
└─────────────────────────────────────────────────────────────────┘
                               │
                               ▼
┌─────────────────────────────────────────────────────────────────┐
│                    RetroShield Hardware                         │
├─────────────────────────────────────────────────────────────────┤
│  ┌───────────────┐    ┌───────────────┐    ┌───────────────┐   │
│  │   Arduino     │◀──▶│   Z80 CPU     │◀──▶│   Serial      │   │
│  │ Mega/Teensy   │    │   (Real!)     │    │   Terminal    │   │
│  │ (ROM/RAM/IO)  │    │               │    │               │   │
│  └───────────────┘    └───────────────┘    └───────────────┘   │
└─────────────────────────────────────────────────────────────────┘

Memory Map

The standard RetroShield Z80 memory layout:

Address Range	Size	Description
`$0000-$1FFF`	8KB	ROM (program code)
`$2000-$7FFF`	24KB	RAM
`$8000-$FFFF`	32KB	Extended RAM (Teensy only)

I/O Ports

Two serial chip configurations are supported:

MC6850 ACIA (ports $80/$81)

Used by kz80_forth, kz80_pascal, RetroLang (default), MINT, Firth, Monty.

Port	Read	Write
$80	Status register	Control register
$81	Receive data	Transmit data

Intel 8251 USART (ports $00/$01)

Used by original RetroShield sketches, Grant Searle's BASIC, EFEX.

Port	Read	Write
$00	Receive data	Transmit data
$01	Status register	Mode/Command register

Getting Started

Quick Start with RetroLang

Install the toolchain: bash cargo install retrolang retrolang-asm
Write a program (hello.rl): proc main() print("Hello, RetroShield!"); println(); end;
Compile to binary: bash retrolang hello.rl --binary
Test with the emulator (if installed): bash ./retroshield hello.bin
Load on hardware:
Use bin2c to create a C header
Include in your Arduino sketch
Upload to RetroShield

Building the Emulators

C Emulator:

cd emulator
brew install notcurses  # or apt-get install libnotcurses-dev
make

Rust Emulator:

cd emulator/rust
cargo build --release

Source Code

All projects are open source and available on GitHub/GitLab:

retroshield-arduino - Main repository with all projects
retrolang - RetroLang compiler
retrolang-asm - Z80 assembler
retrolang-math - Expression evaluator
retroshield-hw - RetroShield hardware design by Erturk Kocalar

Acknowledgments

Erturk Kocalar - Creator of the RetroShield hardware platform
Guy Black - Original author of FantASM assembler
Grant Searle - Z80 BASIC and reference designs
superzazu - Z80 emulation library

License

All projects are released under open source licenses (BSD 3-Clause or MIT). See individual project repositories for details.
